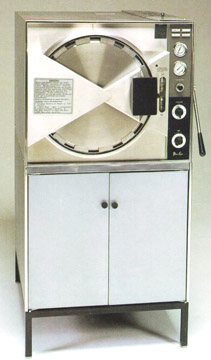

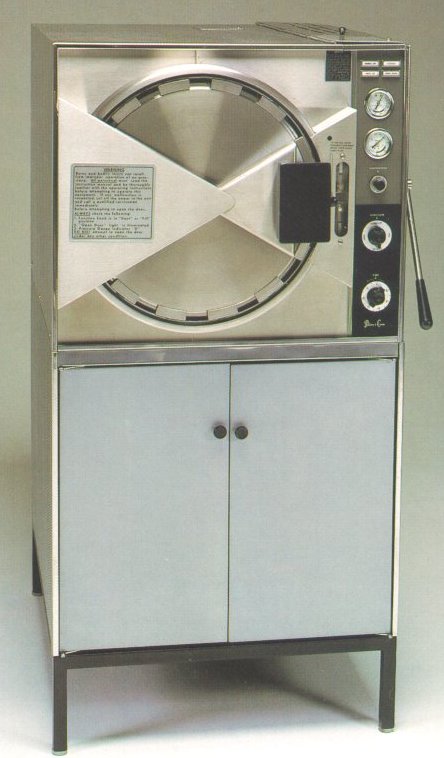

Pelton & Crane Magna-Clave Autoclave

Fill out our short inquiry form
or call now for our best deals on Pelton and Crane Sterilizers!

800-839-0722

Click here for a brochure!

Note: Prices reflected in the brochure are standard retail prices - contact us for great deals on the Magnaclave!

With a chamber size measuring 15" x 26", the Pelton & Crane Magna-Clave is ideal for busy group practices, emergency clinics, nursing homes, veterinary clinics, and small hospitals.

Overall dimensions:
28"      (71.1 cm)    Wide
34.5"   (87.6 cm)    Deep
53"      (134.6 cm)  High with stand
23"      (58.4 cm)    High without stand

Chamber dimensions:
15" dia x 26" (38.7cm x 66 cm) deep

Weight:
355# the actual sterilizer
89# stand only
To operate and maintain the Magna Clave, a minimum space of 34" - 40" wide x 56" deep x 65" high (with stand) 35" (without stand) is required.

Timer activates automatically as the desired pressure for sterilization is reached	Large capacity chamber makes the unit ideal for a busy practice
Completes a flash cycle in 18 min. from a warm start, 35 min. from a cold start	Reservoir drain is conveniently located on the front for easy cleaning.
Clear, concise operation instructions make training easy.	The large chamber holds several packs at once.
Patented door lock provides maximuim safety by locking entire rim of door	Seperate temerature and pressure guages make monitoring seterilization parameters simple and easy.
Indicator lights show "Power on", "Heat on", "Sterile" and "Open door" giving positive indication of the status of the sterilization cycle.	Green area is clearly marked on both the temperature and pressure gauge showing the normal sterilization range for quick monitoring.
Buzzer sounds at then end of the sterilization cycle alertin gthe operator that the chamber can be vented.	Water reservoir has large capacity to adequately cool condensed steam, reducing the need for refilling.
Safety interlock prevents main heaters from activatiion unless door is securely locked for added safety.	Water level indicator clearly shows how much water is needed.
Preheat feature allows faster sterilization cycles even a the start of the day.	Mechanical stops prevent the fucntion control from being operated in an unsafe manner
Omni-cleaner safely and effectively cleans chamber and internal parts.	Fill filter easily removes for cleaning.
